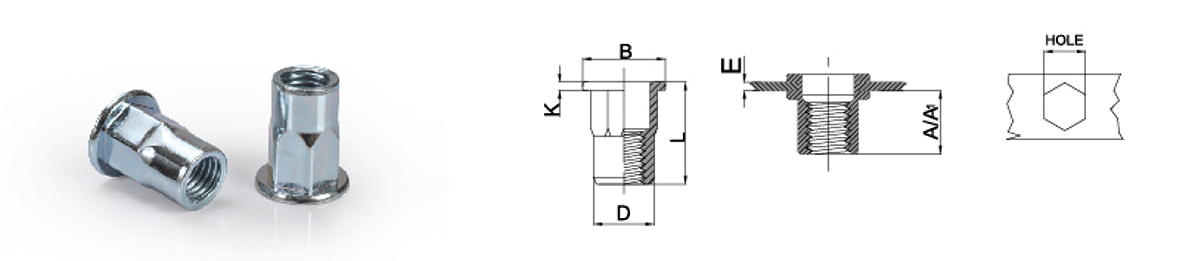

单位:mm |
F=平头/H=半六角/S=碳钢 |
|||||||
|
螺纹 |
编号 |
铆接范围 |
A |
孔的大小 |
D |
B |
K |
L |
|
M4 |
FHS-04M-20 |
0.5-2.0 |
6.2 |
6.0 |
5.9 |
9.0 |
0.8 |
11.0 |
|
M5 |
FHS-05M-25 |
0.5-2.5 |
8.0 |
7.0 |
6.9 |
10.0 |
1.0 |
13.0 |
|
M6 |
FHS-06M-30 |
0.5-3.0 |
9.2 |
9.0 |
8.9 |
12.7 |
1.4 |
15.0 |
|
M8 |
FHS-08M-35 |
1.0-3.5 |
10.5 |
11.0 |
10.9 |
16.0 |
1.5 |
18.0 |
|
M10 |
FHS-10M-35 |
1.0-3.5 |
13.5 |
13.0 |
12.9 |
18.0 |
1.7 |
21.0 |
|
FHS-10M-35(12H) |
1.0-3.5 |
12.5 |
12.0 |
11.9 |
17.0 |
1.6 |
19.0 |
|
|
M12 |
FHS-12M-40 |
1.0-4.0 |
13.7 |
15.0 |
14.9 |
20.0 |
1.7 |
23.0 |
|
FHS-12M-50(16H) |
2.0-5.0 |
15.7 |
16.0 |
15.9 |
23.0 |
2.2 |
27.5 |
|
