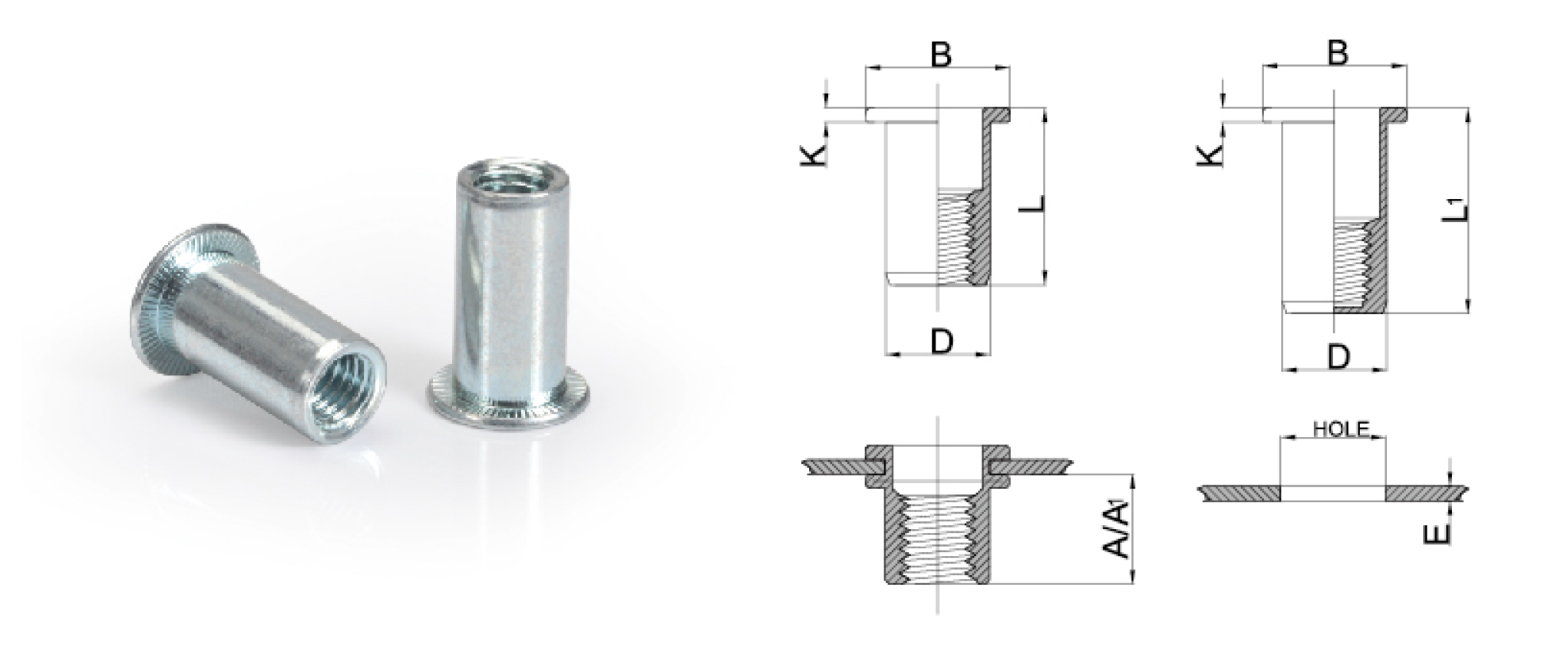

单位:mm |
F=平头/P=圆柱体/S=碳钢/B=盲孔 |
|||||||||
|
螺纹 |
编号 P/N |
铆接范围 |
A |
孔的大小 |
D |
B |
K |
L |
盲孔 |
|
|
M3 |
FPS-03M-15 |
0.5-1.5 |
5.0 |
5.0 |
4.9 |
7.2 |
0.8 |
8.5 |
10.0 |
13.5 |
|
FPS-03M-25 |
1.5-2.5 |
9.5 |
|
|
||||||
|
M4 |
FPS-04M-20 |
0.5-2.0 |
6.8 |
6.0 |
5.9 |
8.5 |
0.8 |
10.5 |
11.3 |
16.0 |
|
FPS-04M-35 |
2.0-3.5 |
12.0 |
18.0 |
|||||||
|
M5 |
FPS-05M-25 |
0.5-2.5 |
8.7 |
7.0 |
6.9 |
10.0 |
1.0 |
13.0 |
11.5 |
17.0 |
|
FPS-05M-50 |
2.5-5.0 |
8.5 |
17.0 |
19.0 |
||||||
|
M6 |
FPS-06M-30 |
0.5-3.0 |
9.8 |
9.0 |
8.9 |
12.3 |
1.3 |
15.5 |
12.7 |
19.2 |
|
FPS-06M-55 |
3.0-5.5 |
9.2 |
18.0 |
21.0 |
||||||
|
M8 |
FPS-08M-35 |
0.5-3.5 |
10.8 |
11.0 |
10.9 |
15.0 |
1.5 |
18.5 |
14.8 |
21.5 |
|
FPS-08M-60 |
3.5-6.0 |
11.8 |
21.0 |
24.0 |
||||||
|
M10 |
FPS-10M-25 |
0.5-2.5 |
10.5 |
13.0 |
12.9 |
16.3 |
1.5 |
17.0 |
|
|
|
FPS-10M-40 |
2.5-4.0 |
13.7 |
13.0 |
12.9 |
17.0 |
1.6 |
21.0 |
19.2 |
27.0 |
|
|
FPS-10M-60 |
4.0-6.0 |
18.0 |
24.0 |
|||||||
|
FPS-10M-35(12H) |
1.0-3.5 |
12.5 |
12.0 |
11.9 |
16.0 |
1.6 |
19.0 |
|||
|
M12 |
FPS-12M-40 |
1.0-4.0 |
13.5 |
15.0 |
14.9 |
18.0 |
1.7 |
22.0 |
||
|
FPS-12M-65 |
4.0-6.5 |
25.0 |
||||||||
|
|
FPS-12M-40(16H) |
1.0-4.0 |
15.5 |
16.0 |
15.9 |
22.0 |
2.0 |
25.0 |
||
|

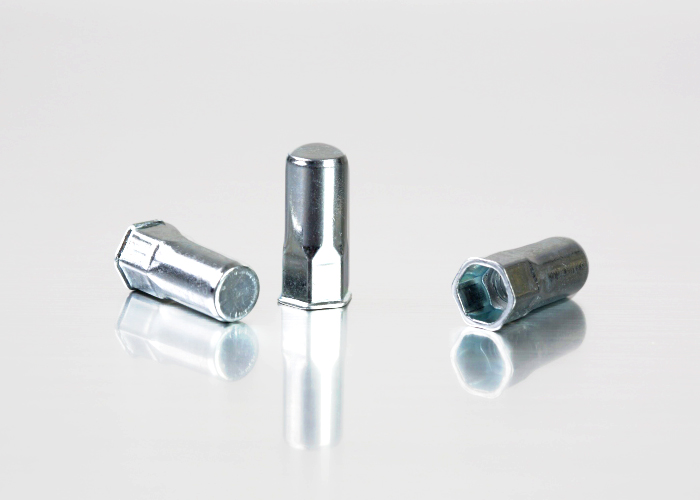

盲孔部分产品代码后缀加“B”,例如:FPS-03M-15B |
||||||||||
